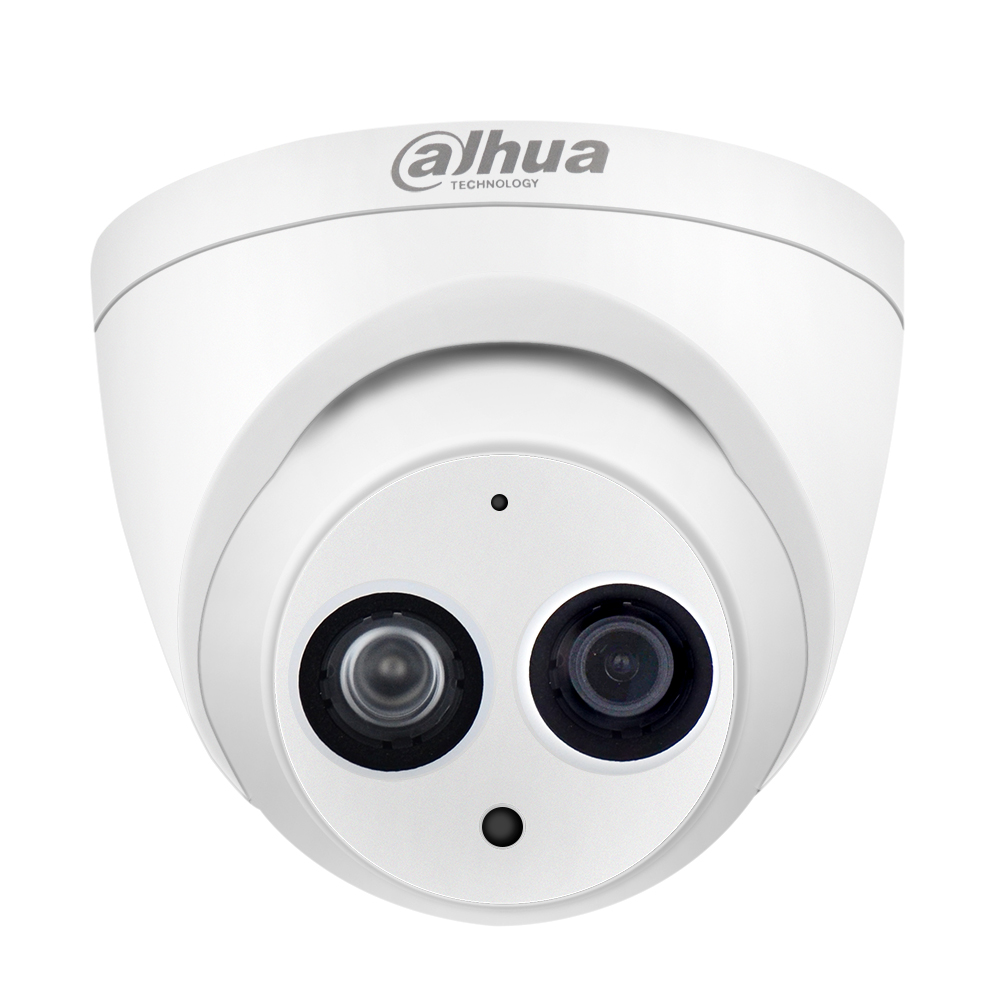

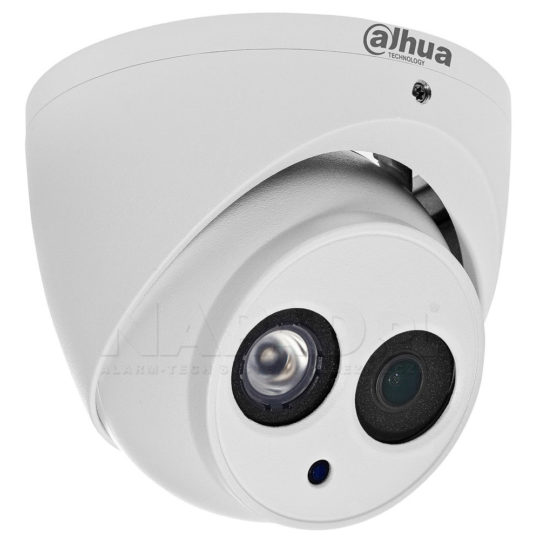

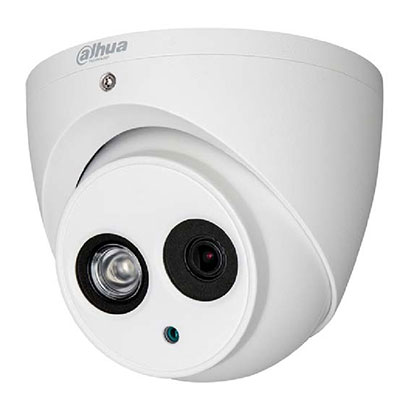

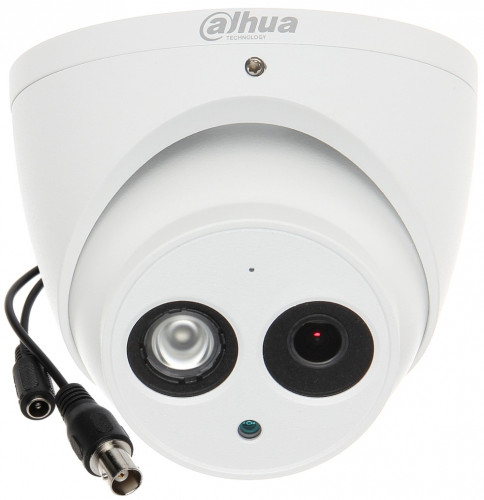

Dahua HAC-HDW1200EMP-A
2MP HDCVI PoC IR Eyeball Camera
> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 50m, Smart IR
> IP67, POC/DC12V
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 50m, Smart IR
> IP67, POC/DC12V
Product Description
2MP HDCVI PoC IR Eyeball Camera
> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 50m, Smart IR
> IP67, POC/DC12V
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 50m, Smart IR
> IP67, POC/DC12V
Camera
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 50m (164feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 1 |
Lens
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F1.85 |
| Angle of View | H: 87.5° (103°, 54.7°) |
| Focus Control | N/A |
| Close Focus Distance | 500mm (900mm, 2000mm) 19.69'' (35.43", 78.74'') |
DORI Distance
| DORI Definition | Distance | |
| Detect | 25px/m (8px/ft) | 2.8mm: 37m(122ft) 3.6mm: 53m(175ft) 6mm: 80m(262ft) |
| Observe | 63px/m (19px/ft) | 2.8mm: 15m(49ft) 3.6mm: 21m(70ft) 6mm: 32m(105ft) |
| Recognize | 125px/m (38px/ft) | 2.8mm: 8m(25ft) 3.6mm: 11m(35ft) 6mm: 16m(52ft) |
| Identify | 250ppm (76px/ft) | 2.8mm: 4m(12ft) 3.6mm: 5m(17ft) 6mm: 8m(26ft) |
Video
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
Download Dahua HAC-HDW1200EMP-A CC CAMERA Datasheet
