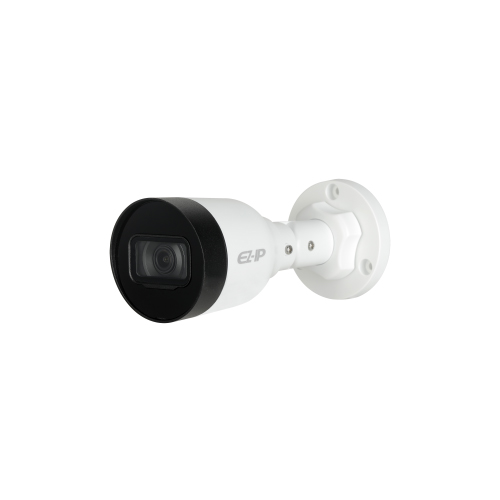

Dahua IPC-B1B20P-L
2MP IR Mini-Bullet Network Camera
> 1/2.7” 2Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080) & 25/30fps@1.3MP(1280×960)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080) & 25/30fps@1.3MP(1280×960)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
Product Description
Dahua IPC-B1B20P-L
2MP IR Mini-Bullet Network Camera
> 1/2.7” 2Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080) & 25/30fps@1.3MP(1280×960)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080) & 25/30fps@1.3MP(1280×960)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
Biovaas Tech Aid is offering best Dahua IPC-B1B20P-L Camera Price in Bangladesh
| Camera | |||||
| Image Sensor | 1/2.7” 2Megapixel progresive CMOS | ||||
| Effective Pixels | 1920(H) x1080(V) | ||||
| RAM/ROM | 64MB/16MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination | 0.09Lux/F2.0(Color,1/3s,30IRE) 0.5Lux/F2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on) | ||||
| S/N Ratio | More than 50dB | ||||
| IR Distance | Distance up to 30m(98ft) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 1 | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | Board-in | ||||
| Focal Length | 2.8 mm (3.6 mm optional) | ||||
| Max. Aperture | F2.0/F2.0 | ||||
| Angle of View | H:115°/87.5°, V:60°/47° | ||||
| Focus Control | Fixed | ||||
| Close Focus Distance | 0.6m(1.97ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 43.5m(143ft) | 17.4m(57ft) | 8.7m(28.5ft) | 4.3m(14ft) | |
| 3.6 mm | 53.3m(175ft) | 21.3m(70ft) | 10.7m(35ft) | 5.3m(17.4ft) | |
| PTZ | |||||
| Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° | ||||
| Video | |||||
| Compression | H.265/H.264H/MJPEG(Sub Stream) | ||||
| Smart Codec | Support H.265+/H.264+ | ||||
| Streaming Capability | 2 Streams | ||||
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)//VGA(640×480)/ CIF(352×288/352×240) | ||||
| Frame Rate | Main Stream: 1080P (1 ~ 20fps) | ||||
| Sub Stream: D1(1 ~ 25/30fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H265:12K~5632K H.264:32K ~8192K | ||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | N/A |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4; NTP;Multicas; ICMP; IGMP |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | N/A |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS,DMSS |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | CE: (EN 60950:2000) FCC: FCC Part 15 Subpart B |
| Interface | |
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
| Electrical | |
| Power Supply | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption | <4.2W |
Download Dahua IPC-B1B20P-L CAMERA Datasheet
