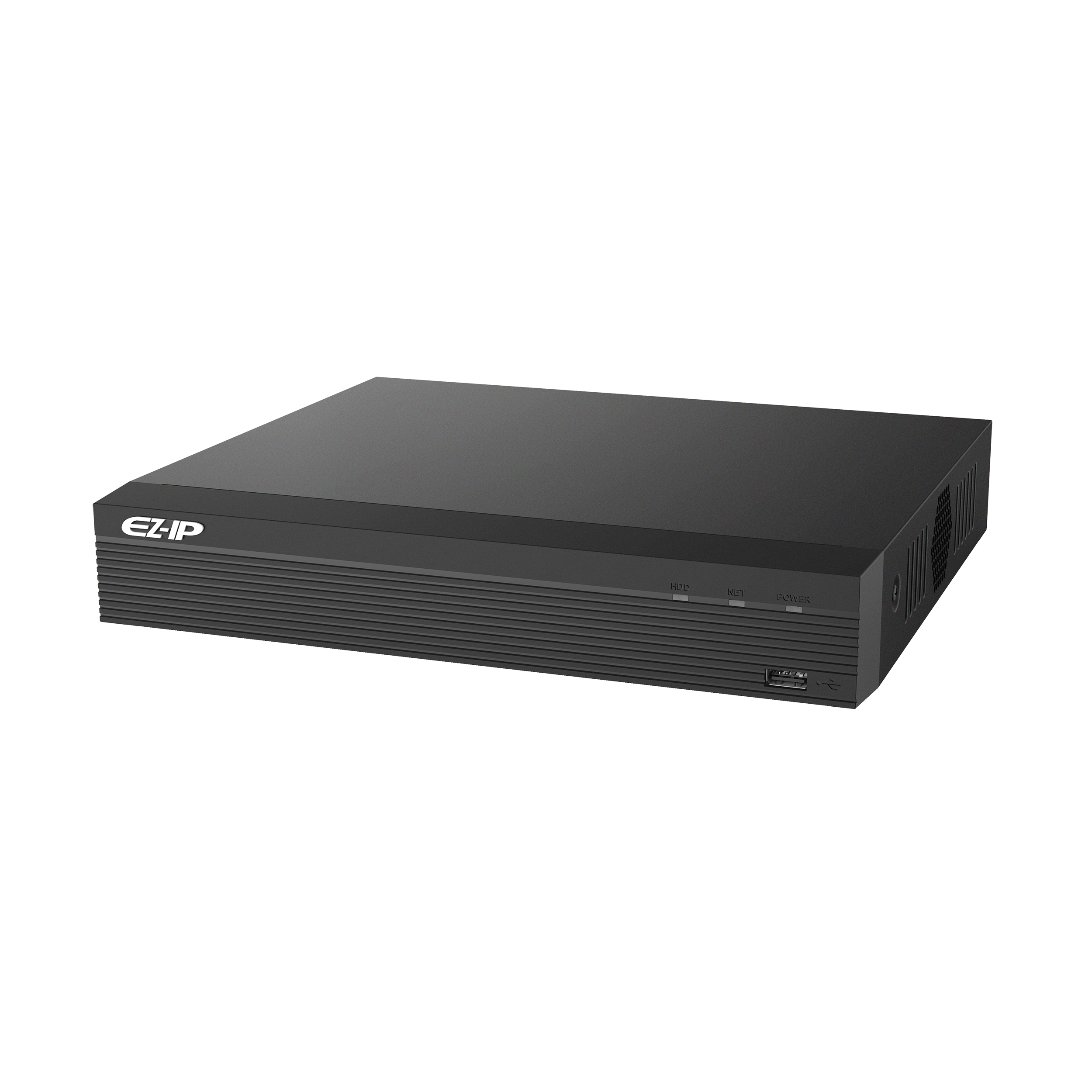

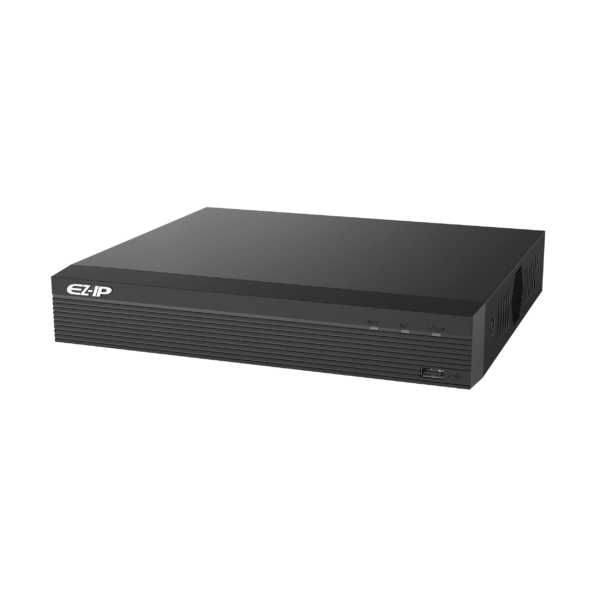

DAHUA NVR1B08HS
8 Channel Compact 1U H.265 4PoE Network Video Recorder
> H.265+/H.264+ codec decoding
> Max 80Mbps incoming bandwidth
> Max 4 channel IP camera inputs
> Up to 8MP resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports
> Max 80Mbps incoming bandwidth
> Max 4 channel IP camera inputs
> Up to 8MP resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports
Product Description
NVR1B08HS
8 Channel Compact 1U H.265 4PoE Network Video Recorder
> H.265+/H.264+ codec decoding
> Max 80Mbps incoming bandwidth
> Max 4 channel IP camera inputs
> Up to 8MP resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports
> Max 80Mbps incoming bandwidth
> Max 4 channel IP camera inputs
> Up to 8MP resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports
System
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
Audio & Video
| IP Camera Input | 4 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
Display
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840 ×2160,1920×1080, 1280×1024, 1280×720, 1024×768 |
| VGA: 1920×1080, 1280×1024, 1280×720, 1024×768 | |
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps |
| Multi-screen Display | 1/4 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
Recording
| Compression | H.265+/H.264+ |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. |
| Record Rate | 80Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
To know more details please download : NVR Datasheet
