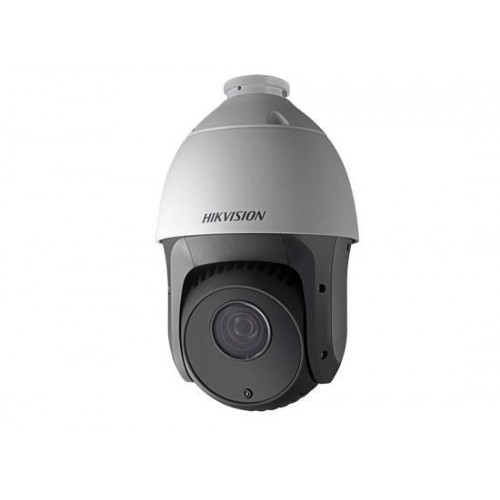

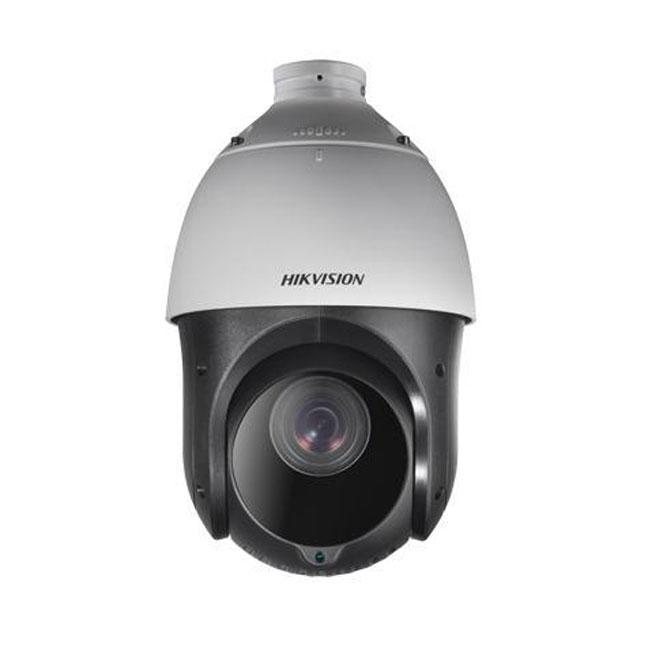

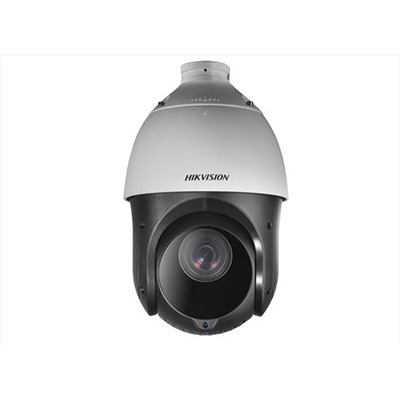

Hikvision DS-2AE4223TI-D
Turbo IR PTZ dome camera
- 1/2.8” Progressive Scan CMOS
- 1920×1080
- 23X Optical Zoom
- DWDR
- Up to 100m IR distance
- 3D intelligent positioning function
Product Description
Turbo IR PTZ dome camera
- 1/2.8” Progressive Scan CMOS
- 1920×1080
- 23X Optical Zoom
- DWDR
- Up to 100m IR distance
- 3D intelligent positioning function
Camera
| Camera Module | |
| Image Sensor | 1/2.8’’ Progressive Scan CMOS |
| Min. IlluminaƟon | Color: 0.05Lux@( F1.4,AGC ON); B/W: 0.005Lux@( F1.4,AGC ON), 0 Lux with IR |
| Max. Image ResoluƟon | 1920 x 1080 |
| Focal Length | 4-92.0mm, 23x |
| Digital Zoom | 16X |
| Zoom Speed | Approx.3s(OpƟcal Wide~Tele) |
| Angle of View | 49-2.2 degree(Wide-Tele) |
| Min. Working Distance | 10~1,000mm(Wide~Tele) |
| Aperture Range | F1.4-F3.5 |
| Focus Mode | Auto / SemiautomaƟc / Manual |
| DWDR | Support |
| S / N RaƟo | ≥ 50dB |
| ShuƩer Time | 1-1/10,000s |
| AGC | Auto / Manual |
| White Balance | Auto / Manual / ATW / Indoor / Outdoor |
| Day & Night | IR Cut Filter |
| Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
| Enhancement | 3D DNR, BLC, EIS |
Menu
| Turbo HD Output | 1 turbo HD720P/1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
| CVBS Output | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
| RS-485 Interface | Half-duplex mode Self-adapƟve HIKVISION,Pelco-P, Pelco-D protocol |
| UTC funcƟon | HIKVISION_C |
General
| Menu Language | English |
| Power | 12VDC, Max.18W |
| Working Temperature / Humidity | -30 °C-65°C(-22°F-149°F) 90% or less |
| ProtecƟon Level | IP66 standard TVS 4,000V lightning protecƟon, surge protecƟon and voltage transient protecƟon |
| MounƟng | Various mounƟng modes opƟonal |
| Dimensions | Φ164.5(mm)×295(mm) |
| Weight (approx.) | 2Kg (4.41Ibs) |
| Mount OpƟon (only suitable for outdoor dome) | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
Download Hikvision DS-2AE4223TI-D CC Camera Datasheet
