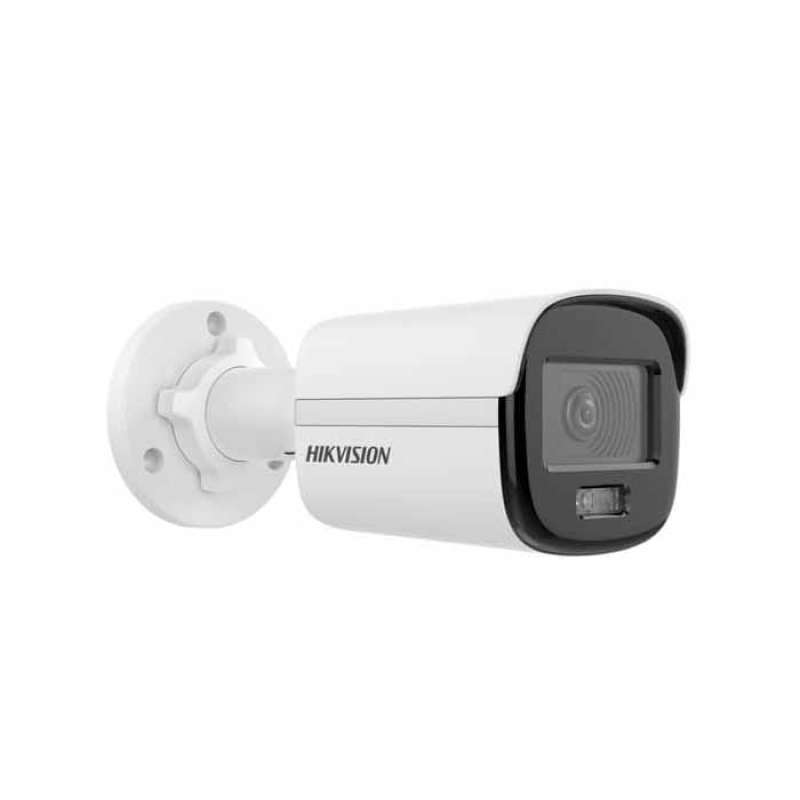

Hikvision DS-2CD1027G0-L Color vu Camera

Product Description

2 MP ColorVu Fixed Bullet Network Camera

• Image Sensor 1/2.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
• Shutter Speed;1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Slow ShutterYes
• P/NP/N
• Wide Dynamic RangeDigital WDR

• Lens
• Lens Type & FOV

  2.8 mm, horizontal FOV 107, vertical FOV 56, diagonal FOV 127

  4 mm, horizontal FOV 84, vertical FOV 45, diagonal FOV 99

• ApertureF1.0
• Lens MountM12
• Aperture TypeFixed
• Depth Of Focus

  2.8 mm: 1.7 m to ∞

  4 mm: 2.1 m to ∞

• Illuminator:
• White Light RangeUp to 30 m

• Video
• Main Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub Stream

  50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

  60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseLine Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream

• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8, IE9, IE10, IE11

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Intelligent (Traditional Algorithm)
• Basic EventMotion detection, exception (illegal login)

• General
• Linkage Method

  Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger capture

  *Note: External device is required.

• Web Client LanguageEnglish
• General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Software ResetReset via web browser and client software
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection

High quality imaging with 2 MP resolution

• Excellent low-light performance
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 24/7 colorful imaging
