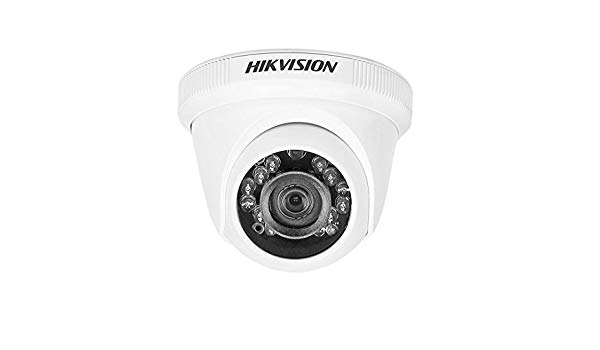

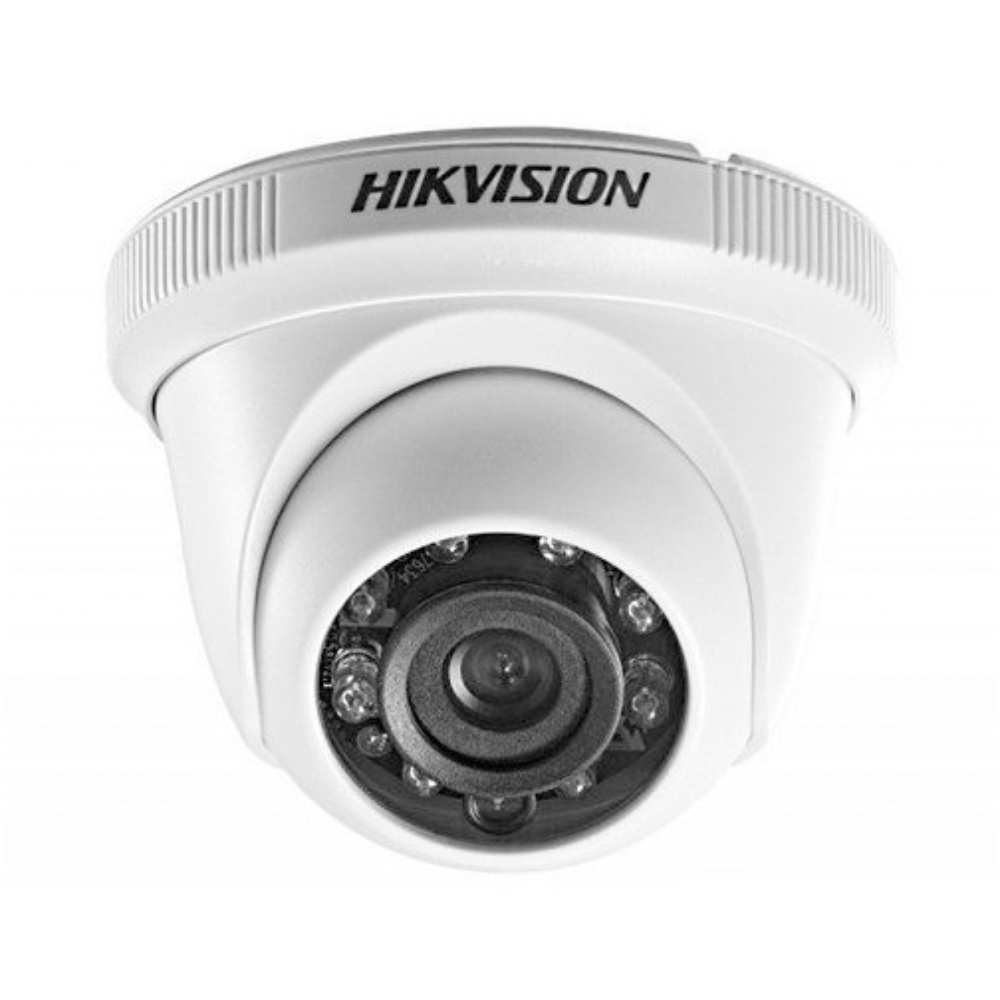

Hikvision DS-2CE56D0T-IRF
2 MP Fixed Turret Camera
- 2 MP turret camera
- Smart IR: up to 25 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Product Description
2 MP Fixed Turret Camera
- 2 MP turret camera
- Smart IR: up to 25 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Camera
| Image Sensor | 2MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) ×1080 (V) |
| Min. illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Lens | 3.6 mm, 2.8 mm, 6 mm fixed lens |
| Horizontal Field of View | 103°(2.8 mm), 82.2°(3.6 mm), 54°(6 mm) |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°to 360°, Tilt: 0°to 75°, Rotation: 0°to 360° |
| Synchronization | Internal synchronization |
Menu
| AGC | Low/middle/high |
| Day/Night Mode | Smart/color/BW(Black and White) |
| Backlight Compensation | Yes |
| DWDR | Yes |
| Language | English, Chinese |
| Functions | Brightness, Sharpness, DNR, Mirror |
General
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ±15% |
| Power Consumption | Max. 4 W |
| Ingress Protection | IP66 |
| Material | Enclosure: Plastic Main Body: Metal |
| IR Range | Up to 20 m |
| Dimension | Φ 89.9 mm × 70.1 mm (3.54" × 2.76") |
| Weight | Approx. 280 g (0.62 lb.) |
Download Hikvision DS-2CE56D0T-IRF CC Camera Datasheet
Download Hikvision DS-2CE56D0T-IRF CC Camera installation guide
