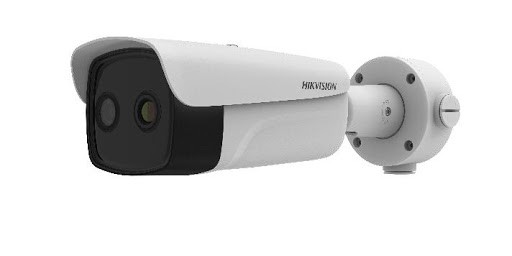

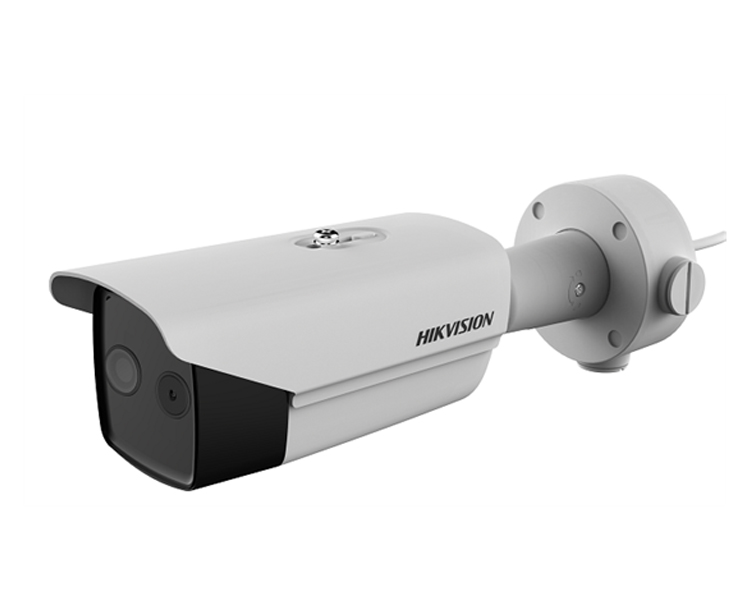

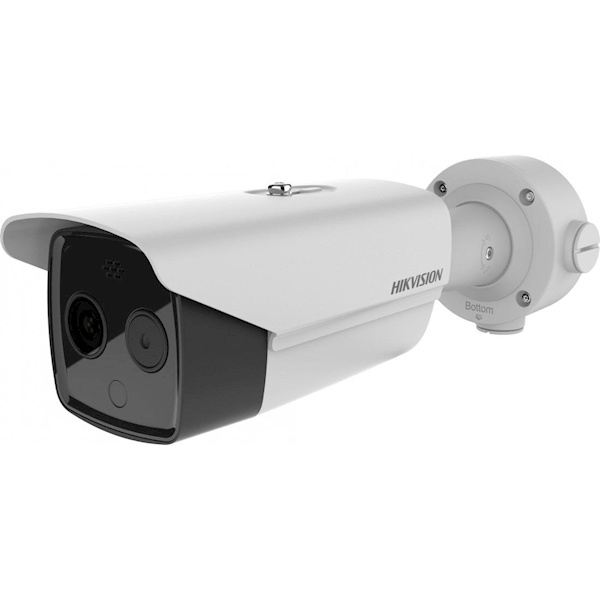

Hikvision DS-2TD2617B-6/PA
Temperature Screening Thermographic Bullet Camera
- High sensitivity thermal module with 160 x 120 resolution
- NETD is less than 40 mk (@25° C, F#=1.1)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Support temperature screening
- Support audio alarm
Product Description
Temperature Screening Thermographic Bullet Camera
- High sensitivity thermal module with 160 x 120 resolution
- NETD is less than 40 mk (@25° C, F#=1.1)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Support temperature screening
- Support audio alarm
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 160 × 120 (the resolution of output image is 320 × 240) |
| Pixel Interval | 17μm |
| Response Waveband | 8 μm to 14 μm |
| NETD (Noise Equivalent Temperature Difference) | ≤ 40 mk (@25 °C, F# = 1.1) |
| Lens (Focal Length) | 6.2 mm |
| IFOV | 2.74 mrad |
| Field of View | 25° × 18.7° (H × V) |
| Min. Focusing Distance | 0.6 m |
| Aperture | F 1.1 |
| Optical Module | |
| Max. Image Resolution | 2688 × 1520 |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
| Shutter Speed | 1 s to 1/100,000 s |
| Lens (Focal Length) | 8 mm |
| Field of View | 39.42° × 22.14° (H × V) |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on optical image |
| Smart Function | |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line). |
| Temperature Range | 30°C to +45 °C |
| Temperature Accuracy | ±0.5°C |
Download Hikvision DS-2TD2617B-6/PA CC Camera Datasheet
Download Hikvision DS-2TD2617B-6/PA CC Camera installation guide
