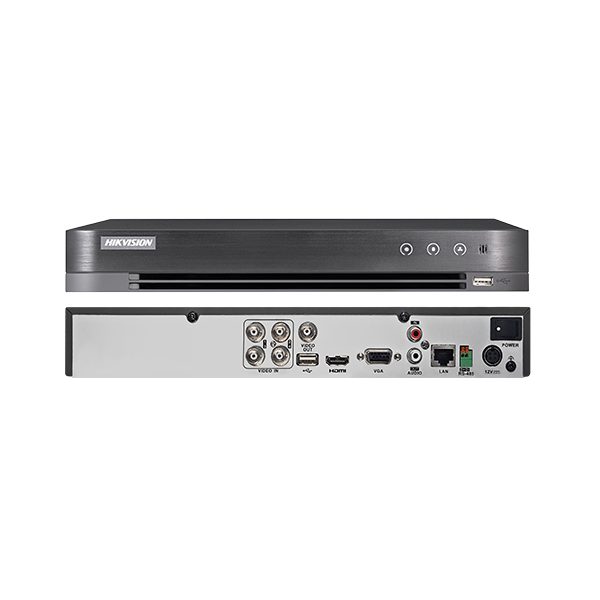

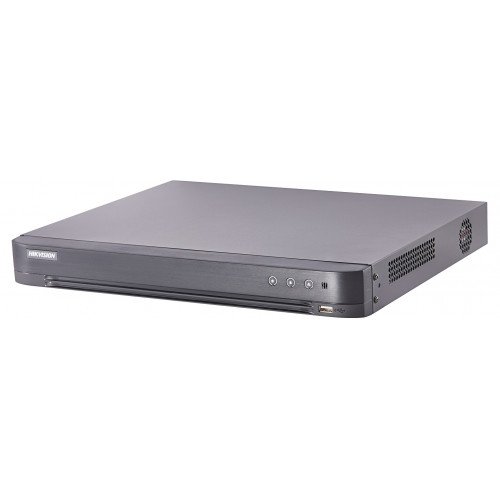

Hikvision DS-7204HUHI-K1
4-ch 5 MP 1U H.265 DVR
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Product Description
4-ch 5 MP 1U H.265 DVR
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 8 network cameras can be connected.
System
| Model | DS-7204HUHI-K1 | DS-7208HUHI-K1 |
| Recording | ||
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF | |
| Frame rate | Main stream: 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) *: 8 MP@8 fps is only available for channel 1 of DS-7204HUHI-K1. | |
| Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) | ||
| Video bit rate | 32 Kbps to 10 Mbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Audio compression | G.711u | |
| Audio bit rate | 64 Kbps |
Video & Audio
| IP video input | 4-ch (up to 8-ch) | 8-ch (up to 16-ch) |
| Up to 8 MP resolution *: 8 MP@8 fps is only available for channel 1 of DS-7204HUHI-K1. | ||
| Support H.265+/H.265/H.264+/H.264 IP cameras | ||
| Analog video input | 4-ch | 8-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | ||
| HDTVI input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 | |
| AHD input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS input | PAL/NTSC | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI/VGA output | 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous playback | 4-ch | 8-ch |
Network
| Remote connections | 32 | 64 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
General
| Power supply | 12 VDC | |
| Consumption (without HDD) | ≤ 10 W | ≤ 20 W |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working humidity | 10% to 90% | |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weights (without HDD) | ≤ 1.16 kg (2.6 lb) | ≤ 2 kg (4.4 lb) |
Download Hikvision DS-7204HUHI-K1 DVR Datasheet
Download Hikvision DS-7204HUHI-K1 DVR guide
