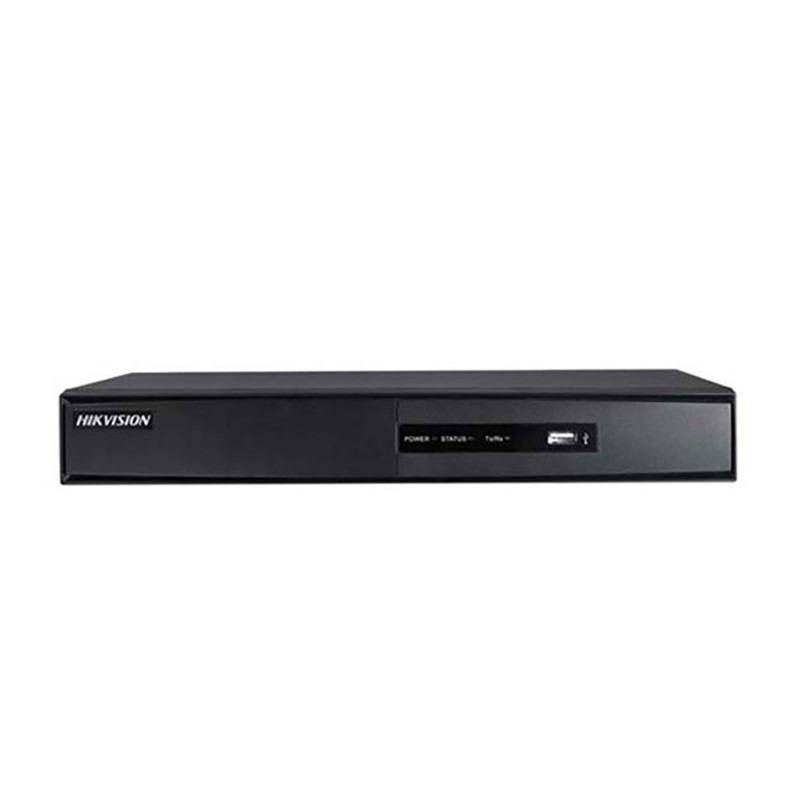

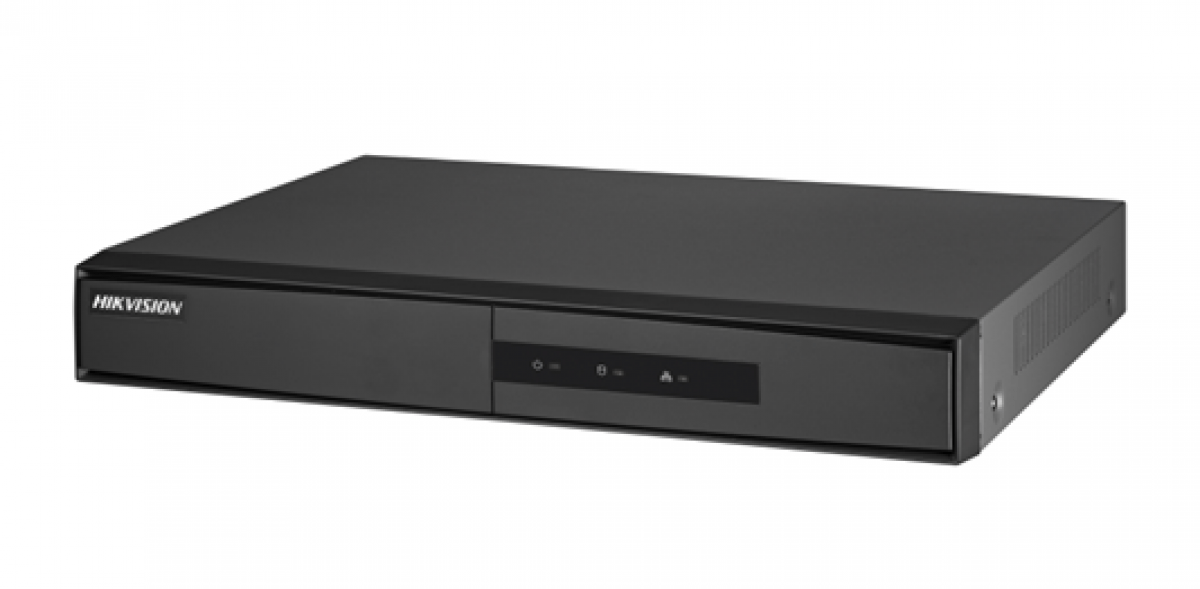

Hikvision DS-7208HGHI-F1
8-ch 1080p Lite 1U H.264 DVR
- 8 channels and 1 HDD 1U DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 25/30 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 10 network cameras can be connected
Product Description
8-ch 1080p Lite 1U H.264 DVR
- 8 channels and 1 HDD 1U DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 25/30 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 10 network cameras can be connected
System
| Model | DS-7204HGHI-F1 | DS-7208HGHI-F1 | DS-7216HGHI-F1 |
| Recording | |||
| Video compression | H.264+/H.264 | ||
| Encoding resolution | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF | ||
| Frame rate | Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | ||
| Sub-stream: 2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N) | Sub-stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) | ||
| Video bit rate | 32 Kbps to 4 Mbps | ||
| Dual stream | Support | ||
| Stream type | Video, Video & Audio | ||
| Audio compression | G.711u | ||
| Audio bit rate | 64 Kbps |
Video & Audio
| IP video input | 1-ch (up to 5-ch) | 2-ch (up to 10-ch) | 2-ch (up to 18-ch) |
| Up to 960p resolution | Up to 1080p resolution | ||
| Support H.264+/H.264 IP cameras | |||
| Analog video input | 4-ch | 8-ch | 16-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |||
| Turbo HD input | 1080p25, 1080p30, 720p25, 720p30 | ||
| AHD input | 1080p25, 1080p30, 720p25, 720p30 | ||
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 | ||
| CVBS input | Support | ||
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | ||
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | ||
| Two-way audio | Reuse the first audio input | ||
| Synchronous playback | 4-ch | 8-ch | 16-ch |
Network
| Remote connections | 32 | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
General
| Power supply | 12 VDC | ||
| Consumption (without HDD) | ≤ 8 W | ≤ 12 W | ≤ 20 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | ||
| Working humidity | 10% to 90% | ||
| Dimensions (W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) | ||
| Weight (without HDD) | ≤ 1 kg (2.2 lb) | ≤ 1.2 kg (2.6 lb |
Download Hikvision DS-7208HGHI-F1 DVR Datasheet
Download Hikvision DS-7208HGHI-F1 DVR guide
