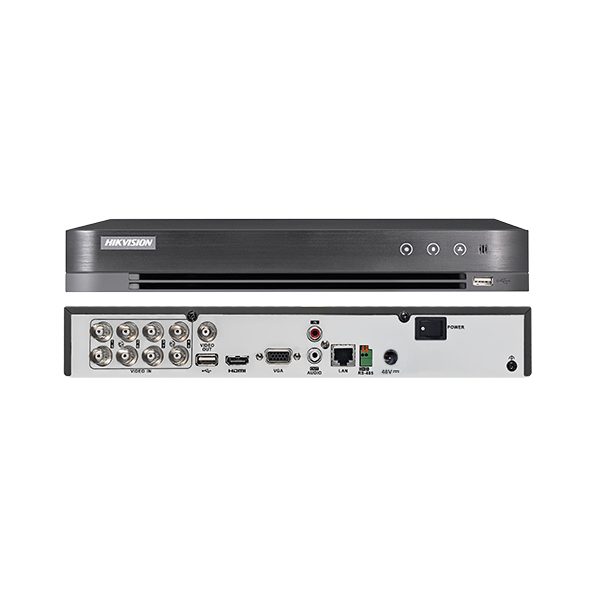

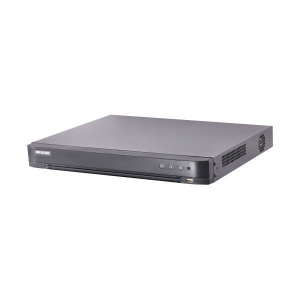

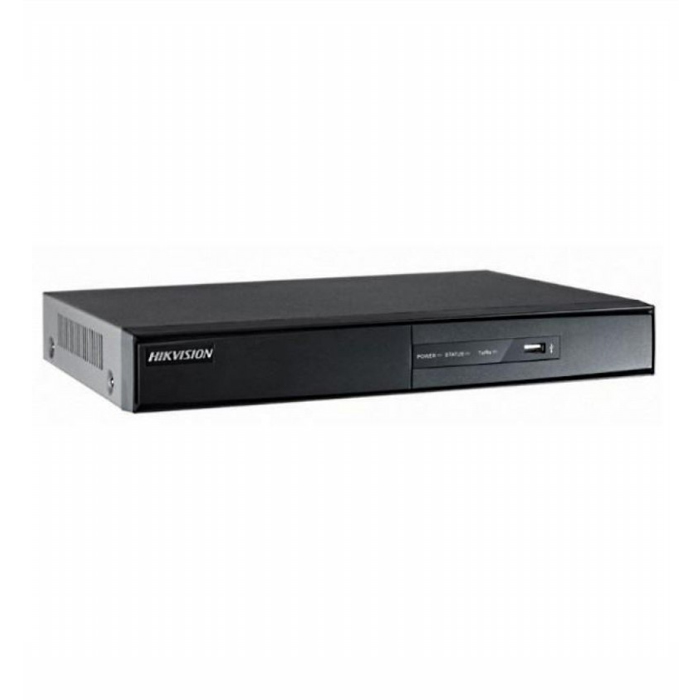

Hikvision DS-7208HQHI-K2
8-ch 1080p 1U H.265 DVR
- 8 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected
Product Description
8-ch 1080p 1U H.265 DVR
- 8 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected
System
| Model | DS-7208HQHI-K2 | DS-7216HQHI-K2 |
| Perimeter Protection¹ | ||
| Line Crossing Detection/ Intrusion Detection | 2-ch Enhanced VCA mode on: 4-ch | 2-ch Enhanced VCA mode on: 4-ch |
| Recording | ||
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding resolution | When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF | |
| Frame rate | Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | ||
| Video bit rate | 32 Kbps to 6 Mbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Audio compression | G.711u | |
| Audio bit rate | 64 Kbps |
Video & Audio
| IP video input2 | 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps | 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps |
| Up to 6 MP resolution | ||
| Support H.265+/H.265/H.264+/H.264 IP cameras | ||
| Analog video input | 8-ch | 16-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | ||
| HDTVI input | 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2. | |
| AHD input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS input | PAL/NTSC | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), |
| resolution: PAL: 704 × 576, NTSC: 704 × 480 | ||
| VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| 8-ch via coaxial cable | 16-ch via coaxial cable | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) | |
| Synchronous playback | 8-ch | 16-ch |
Network
| Total bandwidth | 96 Mbps | 128 Mbps |
| Incoming bandwidth (Enhanced IP mode) | 48 Mbps | 96 Mbps |
| Remote connection | 64 | 128 |
| Network protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
General
| Power supply | 12 VDC, 3.33 A | 12 VDC, 5 A |
| Consumption (without HDD) | ≤ 7.5 W | ≤ 25 W |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working humidity | 10% to 90% | |
| Dimension (W × D × H) | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight (without HDD) | ≤ 1.78 kg (3.9 lb) | ≤ 2 kg (4.4 lb) |
Download Hikvision DS-7208HQHI-K2 DVR Datasheet
Download Hikvision DS-7208HQHI-K2 DVR guide
