Total: ৳ 99,000.00

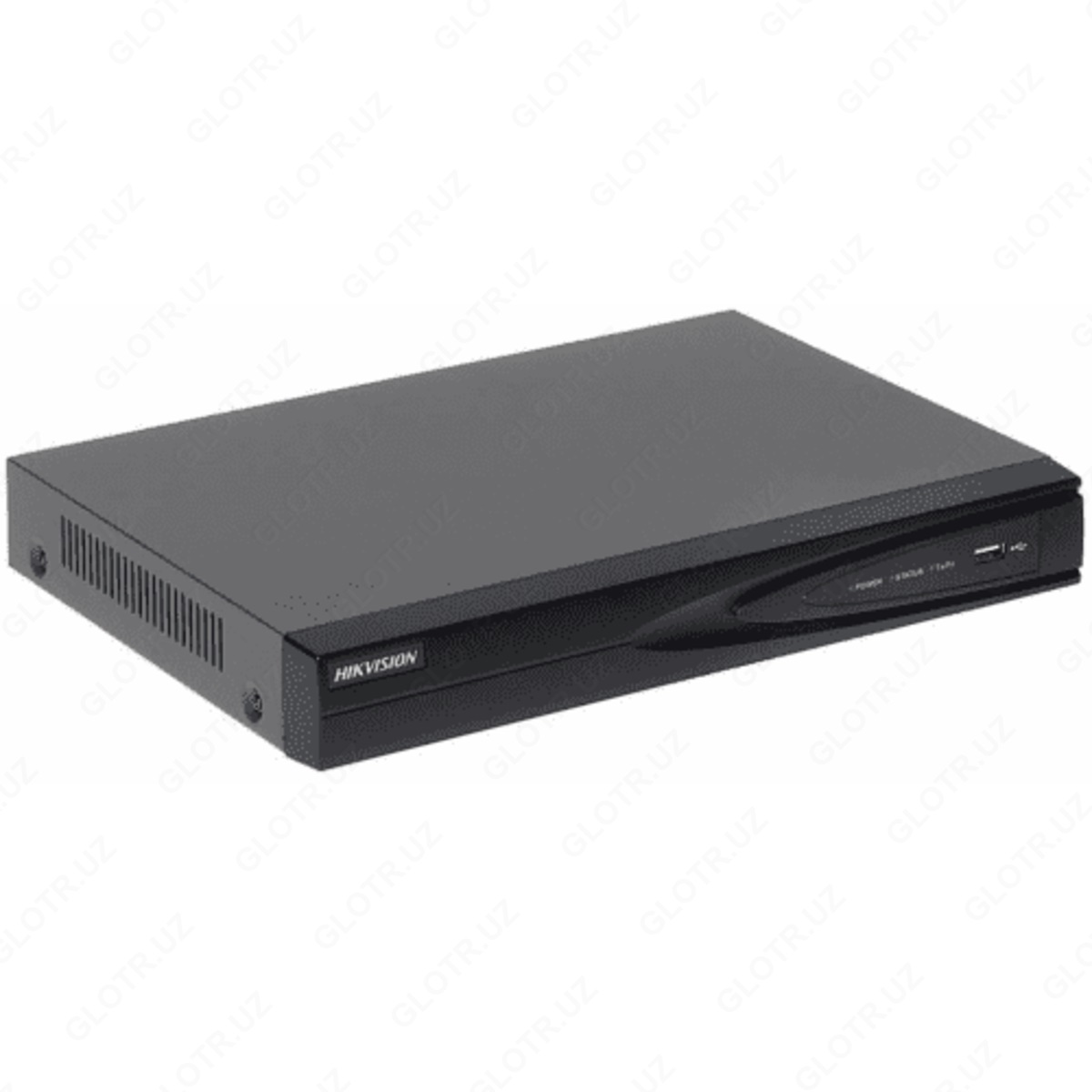

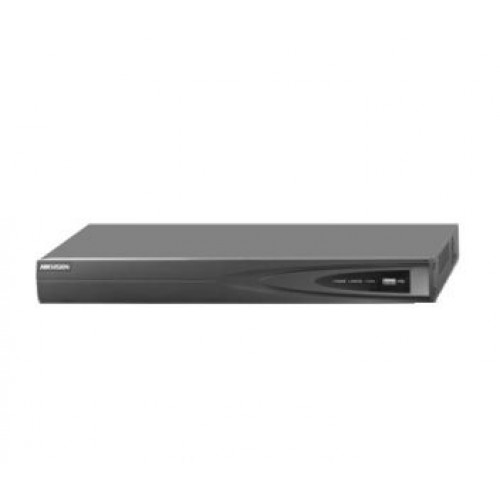

Hikvision DS-7608NI-Q1/8P
8-ch 1U 8 PoE 4K NVR
- Up to 8 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4-ch @ 1080p decoding capacity
- Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 1 HDD for continuous video recording
- Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Product Description
8-ch 1U 8 PoE 4K NVR
- Up to 8 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4-ch @ 1080p decoding capacity
- Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 1 HDD for continuous video recording
- Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
| Video/Audio input | IP video input | 4-ch | 8-ch |
| Up to 8 MP resolution | |||
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | ||
| Network | Incoming bandwidth | 40 Mbps | 80 Mbps |
| Outgoing bandwidth | 80 Mbps | ||
| Video/Audio output | Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ; HDMI/VGA simultaneous output | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | ||
| Decoding | Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 | |
| Live view / Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | ||
| Synchronous playback | 4-ch | 8-ch | |
| Capability | 1-ch @ 8 MP / 4-ch @ 1080p | ||
| Network management | Network protocols | TCP/IP, DHCP, H NFS, iSCSI, UPnP™, HTTPS ik-Connect, DNS, DDNS, NTP, SADP, SMTP, | |
| Hard disk | SATA | 1 SATA interface | |
| Capacity | Up to 6TB capacity for each disk | ||
| External interface | Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |
| USB interface | 2 × USB 2.0 | ||
| POE Interface | Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 50W | ≤ 75W | |
| Standard | IEEE 802.3 af/at | ||
| General | Power supply | 48 VDC | |
| Power | ≤ 65 W | ≤ 90 W | |
| Consumption(without hard disk) | ≤ 10 W (without enabling PoE) | ||
| Working temperature | -10 to +55º C (+14 to +131º F) | ||
| Working humidity | 10 to 90 % | ||
| Chassis | 1U chassis | ||
| Dimensions(W × D × H) | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") | ||
| Weight(without hard disk) | ≤ 1 kg (2.2 lb) |
Download Hikvision DS-7608NI-Q1/8P NVR Datasheet
Download Hikvision DS-7608NI-Q1/8P NVR installation guide
