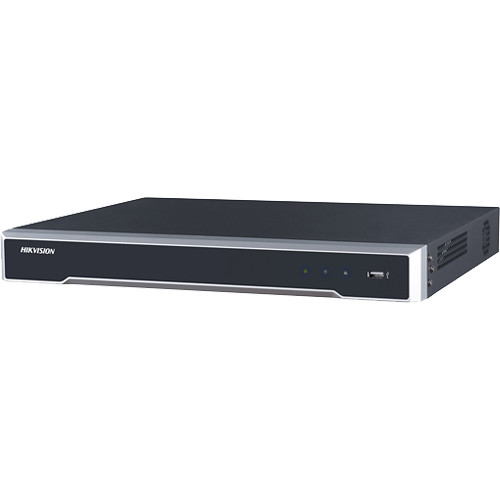

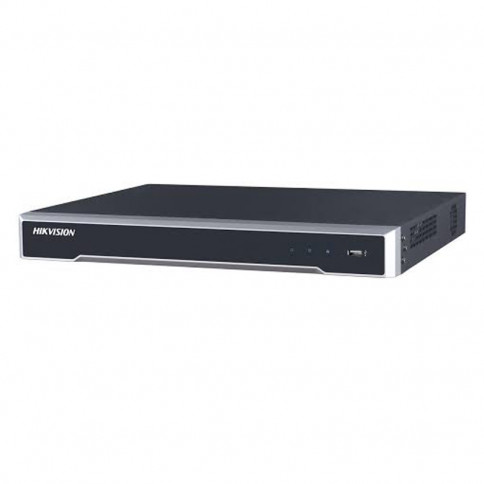

Hikvision DS-7632NI-K2
32-ch 1U 4K NVR
- Up to 32 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 8-ch @ 1080p decoding capacity
- Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
Product Description
32-ch 1U 4K NVR
- Up to 32 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 8-ch @ 1080p decoding capacity
- Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
| Video/ Audio input | IP video input | 8-ch | 16-ch | 32-ch |
| Incoming bandwidth | 80 Mbps | 160 Mbps | 256 Mbps | |
| Outgoing bandwidth | 160 Mbps | |||
| Video/ Audio output | HDMI output resolution | 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| VGA output resolution | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |||
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |||
| Decoding | Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 | ||
| Recording resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF | |||
| Synchronous playback | 8-ch | 16-ch | 16-ch | |
| Capability | 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) | |||
| Network management | Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | ||
| Hard disk | SATA | 2 SATA interfaces | ||
| Capacity | Up to 6 TB capacity for each HDD | |||
| External interface | Two-way audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) | ||
| Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |||
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 | |||
| Alarm in/out | 4/1 | |||
| General | Power supply | 12 VDC | ||
| Power | ≤ 40 W | |||
| Consumption (without hard disk) | ≤15 W | |||
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | |||
| Working humidity | 10 to 90 % | |||
| Dimensions (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") | |||
| Weight (without hard disk) | ≤ 1 kg (2.2 lb) |
Download Hikvision DS-7632NI-K2 NVR Datasheet
Download Hikvision DS-7632NI-K2 NVR installation guide
