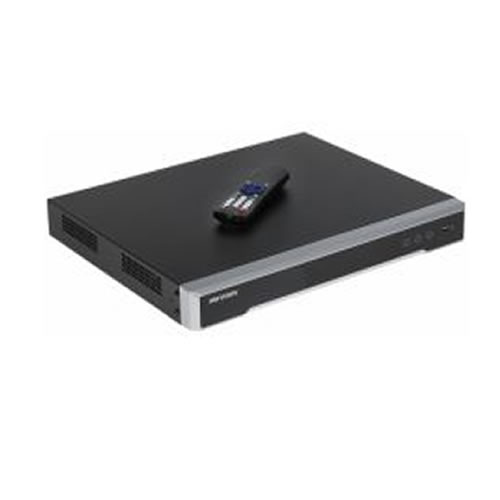

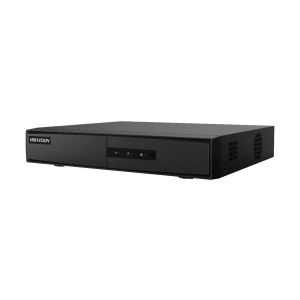

Hikvision DS-7716NI-K4

Up to 16 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 8-ch @ 1080p decoding capacity
Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
4 HDDs for continuous video recording
Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Channel-zero function ensures smooth remote live view and playback in low bandwidth environments

৳ 21,500.00

Up to 16 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 8-ch @ 1080p decoding capacity
Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
4 HDDs for continuous video recording
Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Channel-zero function ensures smooth remote live view and playback in low bandwidth environments

Video/Audio input	IP video input	8-ch	16-ch
Up to 8 MP resolution
Two-way audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network	Incoming bandwidth	80 Mbps	160 Mbps
Outgoing bandwidth	80 Mbps
Video/Audio output	Recording resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI output resolution	1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output resolution	1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output	1-ch, RCA (Linear, 1 KΩ)
Decoding	Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
Live view / Playback resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback	8-ch	16-ch
Capability	1-ch @ 8 MP / 4-ch @ 1080p
Network management	Network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk	SATA	2 SATA interfaces
Capacity	Up to 6TB capacity for each disk
External interface	Network interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface	2 × USB 2.0
General	Power supply	12 VDC
Power	≤ 40W
Consumption (without hard disk)	≤ 15W
Working temperature	-10 to +55º C (+14 to +131º F)
Working humidity	10 to 90 %
Chassis	1U chassis
Dimensions (W × D × H)	385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight(without hard disk)	≤ 1.8 kg (4.0 lb)
