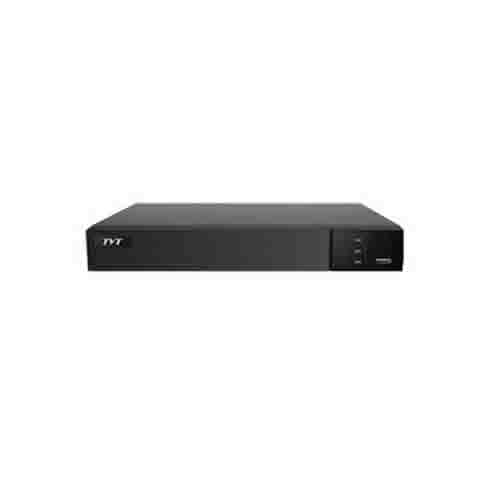

TD-2716NE-HC 5MP Hybrid HD DVR
TVT 5MP Hybrid HD DVR
- 16 CH TVI / CVI / AHD video input
- 16 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
- 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : 16 CH simultaneously playback
- Search: time slice, time, event ( manual, sensor, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS
Product Description
| Product Model | TD-2716TC-PR | |
| System | Main Processor Chip | Cortex A9 |
| Operation System | Embedded Linux | |
| Coding | Standard H.264 High Profile | |
| Video | Local Video Input | BNC×16 |
| Input Resolution | TVI/AHD：5MP 20fps; 4MP、3MP、1080P、720P、WD1 real time
CVI：1080P,720P real time |
|
| Network Input/Access Bandwidth | IPC×4 / 24Mbps | |
| Output | HDMI×1:3840×2160/1920×1080/1280×1024/1024×768
VGA×1:1920×1080/1280×1024/1024×768 |
|
| CVBS | BNC×1:CVBS(used as the main or spot output) | |
| Audio | Local Audio Input | RCA×16 |
| Two-way audio | RCA×1 | |
| Local Output | RCA×1 | |
| Record | Resolution | 5MP、4MP、4MP lite、3MP,1080P、720P、WD1 |
| Local Record Frame Rate | 5MP:10fps(PAL/NTSC)
4MP/3MP:12fps/15fps(PAL/NTSC) 4MP lite/1080P/720P/WD1:25fps/30fps(PAL/NTSC) |
|
| Bit Stream | 768Kbps-8Mbps | |
| Mode | Manual, timer, motion, sensor | |
| Image Quality | 5 Level | |
| IPC Input | Resolution | 4MP/3MP/1080P/960P/720P |
| IPC Record Frame Rate | 25fps(PAL)/30fps(NTSC) | |
| Playback | Playback Channel | 16 CH |
| Network | Interface | RJ45 10/100/1000Mbps × 1 |
| Network Protocol | TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181 | |
| Storage | HDD | SATA×4 |
| Maximum Capacity of HDD | 8T | |
| Backup | USB Backup | Yes |
| eSata Backup | No | |
| Interface | Alarm Input | 16 |
| Alarm Output | 4 | |
| Communication | RS485×2, connect to PTZ and keyboard | |
| Remote | Optional | |
| USB | USB2.0×1 ( front panel ), USB3.0×1( rear panel ) | |
| Others | Computer Case | 1.5U |
| Dimension | 440×390×70(W×D×H) | |
| Power Supply |
ATX
|
|
| Power Comsuption | ≤ 40W ( without HDD ) | |
| Work Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
