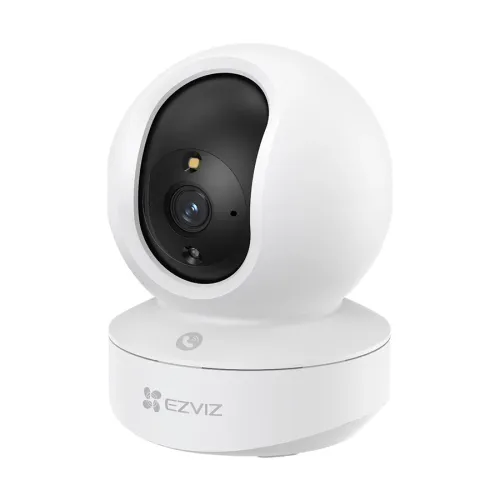

EZVIZ TY1 Pro FHD 2MP Pan & Tilt WiFi Smart Dome IP Camera
The EZVIZ TY1 Pro is a smart indoor WiFi security camera designed for home, office, and small business surveillance. Featuring a 1080p Full HD resolution, it delivers clear video footage at 1920 × 1080 pixels, helping you monitor indoor spaces with enhanced detail.
Its motorized Pan & Tilt mechanism provides 340° horizontal rotation and 55° vertical adjustment, offering wide-area coverage. The camera also features customizable Patrol Mode, allowing it to automatically monitor selected viewing positions.
With Smart Human Shape Detection and Auto-Tracking, the TY1 Pro can identify and follow human movement. Loud Noise Detection provides additional alerts when sudden loud sounds are detected.
The Smart Color Night Vision feature uses a built-in spotlight to capture color footage in low-light conditions. It also supports infrared night vision with a range of up to 10 meters for monitoring in darker environments.
Built-in microphone and speaker enable two-way audio communication. A dedicated touch button allows convenient video calling, while Sleep Mode provides privacy when monitoring is not required.
Supporting 2.4GHz WiFi and wired Ethernet connectivity, the TY1 Pro offers flexible installation options. It also supports MicroSD cards up to 512GB and optional EZVIZ CloudPlay storage.
Key Features
- 1080p Full HD resolution (1920 × 1080)
- 340° horizontal rotation and 55° vertical adjustment
- Smart Human Shape Detection
- Human Shape Tracking and Auto-Tracking
- Customizable Patrol Mode with up to 4 preset points
- Smart Color Night Vision up to 5m
- Infrared Night Vision up to 10m
- Two-way audio communication
- Dedicated touch button for video calling
- Loud Noise Detection
- Sleep Mode for privacy protection
- H.265 video compression
- 2.4GHz WiFi connectivity
- RJ45 wired Ethernet support
- Supports MicroSD cards up to 512GB
- EZVIZ CloudPlay cloud storage support
- Amazon Alexa and Google Assistant integration
Technical Specifications
| Specification | Details |
|---|---|
| Brand | EZVIZ |
| Model | TY1 Pro |
| Model Number | CS-TY1-R105-1L2WF |
| Product Type | Indoor Pan & Tilt WiFi Smart Dome IP Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Resolution Class | 2MP Full HD |
| Lens | 4mm Fixed Lens |
| Maximum Aperture | F1.6 |
| Lens Mount | M12 |
| Field of View | H: 80°, V: 43°, D: 90° |
| Horizontal Rotation | 340° |
| Vertical Rotation | 55° |
| Day & Night | IR-Cut Filter with Auto Switching |
| Night Vision | Smart Color Night Vision & IR Night Vision |
| Color Night Vision Range | Up to 5m |
| IR Night Vision Range | Up to 10m |
| Image Enhancement | 3D DNR, Digital WDR |
| Video Compression | H.264 / H.265 |
| Frame Rate | Self-Adaptive during Network Transmission |
| Smart Detection | Motion Detection, Human Shape Detection |
| Human Tracking | Yes |
| Auto Tracking | Yes |
| Patrol Mode | Overall Patrol & Customized Patrol |
| Preset Patrol Points | Up to 4 Points |
| Loud Noise Detection | Yes |
| Audio | Two-Way Audio |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Touch Calling Button | Yes |
| Privacy Mode | Sleep Mode |
| WiFi Standard | IEEE 802.11b/g/n |
| WiFi Frequency | 2.4GHz |
| Wired Network | RJ45, 10/100Mbps Ethernet |
| Storage | MicroSD Card / EZVIZ CloudPlay |
| Maximum MicroSD Support | 512GB |
| Mobile Application | EZVIZ App |
| Voice Assistant | Amazon Alexa, Google Assistant |
| Power Supply | DC 5V / 1A |
| Power Consumption | Maximum 5W |
| Power Connector | USB Type-C |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 95% or Less, Non-Condensing |
| Dimensions | 88 × 88.2 × 119mm |
| Net Weight | 218g |
| Installation Type | Indoor |
